250-360W Series AC/DC Adapter
◆Features ·Input Voltage range:100VAC-240VAC ·Input Connector: IEC320 C14 ·PF>0.93 ·No load consumption<0.21W ·Enegry Efficiency Level Ⅵ ·Protection Function: Shorting Circuit Protection, Over load Protection, Over Voltage Protection, Over Temperature Protection ·Led Indicator: Power on Indication ·Screw craft, 3 years warranty ·Certificate:UL/GS/CE/PSE/FCC/CCC/SAA ◆Application ·Widely used in computer peripheral devices, printer, communication devices, safety equipment
Classification
keyword：
250-360W adapter
adapter
product details
Dongguan Guangshu Electrical Technology Co.,Ltd is specialized in designing, producing and selling various power adapter ,battery charger,inverter and accept OEM. All products have been approved by UL GS CE PSE CCC CB UKCA SAA , highly efficiency, energy conservation and environmental friendly. If you want to know more detail products information or have different requirements on products,please contact us without any hesitate.
Mobile Phone: 86-13360632549 Email: sales@panfore.com Skype : Panfore
Details
| Item | Model No. | P360-20018000 | P360-24015000 | P360-32011250 | P360-36010000 | P360-48007500 | P360-60006000 |
| Output | DC Voltage | 20V | 24V | 32V | 36V | 48V | 60V |
| Rated current | 18.00A | 15.00A | 11.25A | 10.00A | 7.50A | 6.00A | |
| Current range | 0.1~18.0A | 0.1~15.00A | 0.1~11.25A | 0.1~10.00A | 0.1~7.50A | 0.1~6.00A | |
| Rated power | 360W | 360W | 360W | 360W | 360W | 360W | |
| Ripple & Noise | 200mVp-p | 240mVp-p | 320mVp-p | 360mVp-p | 480mVp-p | 600mVp-p | |
| Voltage tolerance | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| Line regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Load regulation | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| Efficiency | ≥88.8% | ≥88.8% | ≥88.8% | ≥88.8% | ≥88.8% | ≥88.8% | |
| Input | Voltage range | 90~264VAC | |||||
| Frequency range | 47~63Hz | ||||||
| AC current | 6.0A/115Vac | ||||||
| Power Factor(Typ.) | PF>0.93/230VAC PF>0.97/115VAC at full load | ||||||
| Inrush current(max.) | Cold start 35A/115VAC 70A/230VAC | ||||||
| Leakage current(max.) | 0.75mA/240Vac | ||||||
| Protection | Over load | 110 ~ 160% Rated output power | |||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||
| Over voltage | 105%~135% Rated output voltage | ||||||
| Shut down o/p voltage, re-power on to recover | |||||||
| Environment | Working Temp. | -10 ~ +40 ℃ | |||||
| Working Humidity. | 20%~90% RH non-condesing | ||||||
| Storage Temp.& Humidity | -40℃~85℃, 10%~95% RH | ||||||
| Vibration | 10~500Hz, 2G 10min/ cycle,period for 60 min,each along X,Y,Z axes | ||||||
| Safety & EMC | Safety standard | EN62368,UL62368 IEC62368 | |||||
| Withstand Voltage | I/P-O/P:3KVac, 60S | ||||||
| Isolation Risitsance | I/P-O/P: 100M ohms/500Vdc/25℃/70%RH | ||||||
| EMI condition & radiation | Compliance to EN55032 | ||||||
| Harmonic current | Compliance to EN6100-3-2,3 | ||||||
| Others | MTBF | 100Khrs min, MIL-HDBK-217F(25℃) | |||||
| Dimension | 204mm*93.5mm*43mm | ||||||

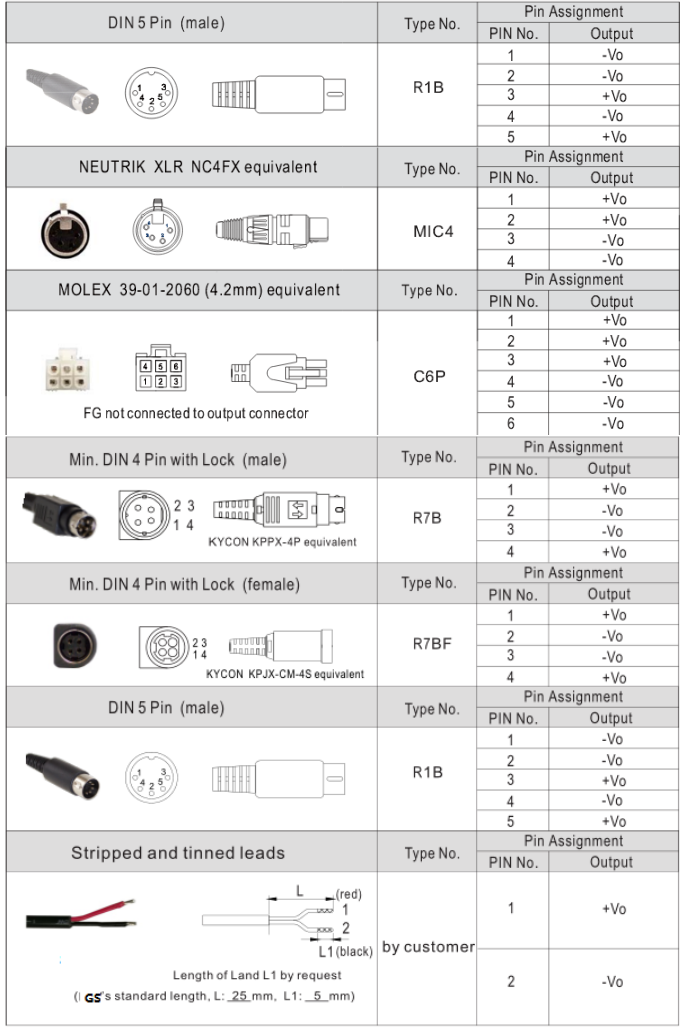

| Standard DC plug | Aviation type, other type available by client's requested | ||||||
Static characteristic
Derating curve
