200-240W Series AC/DC Adapter

◆Features ·Input Voltage range:100VAC-240VAC ·Input Connector: IEC320 C14 ·PF>0.93 ·No load consumption<0.21W ·Enegry Efficiency Level Ⅵ ·Protection Function: Shorting Circuit Protection, Over load Protection, Over Voltage Protection, Over Temperature Protection ·Ultrasonic craft, 3 years warranty ·Certificate:UL/GS/CE/PSE/FCC/CCC/SAA ◆Application ·Widely used in computer peripheral devices, printer, communication devices, safety equipment


Classification

keyword:

200-240W

adapter



product details


Dongguan Guangshu Electrical Technology Co.,Ltd is specialized in designing, producing and selling various power adapter ,battery charger,inverter and accept OEM. All products have been approved by UL GS CE PSE CCC CB UKCA SAA , highly  efficiency, energy conservation and environmental friendly. If you want to know more detail products information or have different requirements on products,please contact us without any hesitate.

Mobile Phone: 86-13360632549 Email: sales@panfore.com Skype : Panfore

Details

Item Model No. P120D10000G1 P190D06840G1 P200D06500G1 P240D05410G1 P360D03600G1 P570D02280G1
Output DC Voltage 12V 19V 20V 24V 36V 57V
Rated current 10.0A 6.84A 6.5A 5.41A 3.6A 2.28A
Current range 0.1~10.0A 0.1~6.5A 0.1~6.5A 0.1~5.41A 0.1~3.6A 0.1~2.28A
Rated power 120W 129.96W 130W 129.84W 129.60W 129.96W
Ripple & Noise 120mVp-p 190mVp-p 200mVp-p 240mVp-p 360mVp-p 500mVp-p
Voltage tolerance ±5.0% ±5.0% ±5.0% ±5.0% ±5.0% ±5.0%
Line regulation ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
Load regulation ±5.0% ±5.0% ±5.0% ±5.0% ±5.0% ±5.0%
Efficiency 88.8% ≥88.8% ≥88.8% ≥88.8% ≥88.8% ≥88.8%
Input Voltage range 90~264VAC
Frequency range 47~63Hz
AC current 3.0A/115Vac
Power Factor(Typ.) PF>0.93/230VAC   PF>0.97/115VAC at full load
Inrush current(max.) Cold start 35A/115VAC      70A/230VAC
Leakage current(max.) 0.75mA/240Vac
Protection Over load 110 ~ 160%  Rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over voltage 105%~135% Rated output voltage
Shut down o/p voltage, re-power on to recover
Environment Working Temp. -10 ~ +40 ℃
Working Humidity. 20%~90% RH  non-condesing
Storage Temp.& Humidity -40~85, 10%~95% RH
Vibration  10~500Hz, 2G 10min/ cycle, period for 60 min,each along X,Y,Z axes
Safety & EMC Safety standard EN62368,UL62368 IEC62368
Withstand Voltage  I/P-O/P:3KVac, 60S
Isolation Risitsance I/P-O/P: 100M ohms/500Vdc/25/70%RH
EMI condition & radiation  Compliance to EN55032
Harmonic current Compliance to EN6100-3-2,3
Others MTBF  100Khrs min, MIL-HDBK-217F(25)
Dimension 155mm*73mm*31.5mm

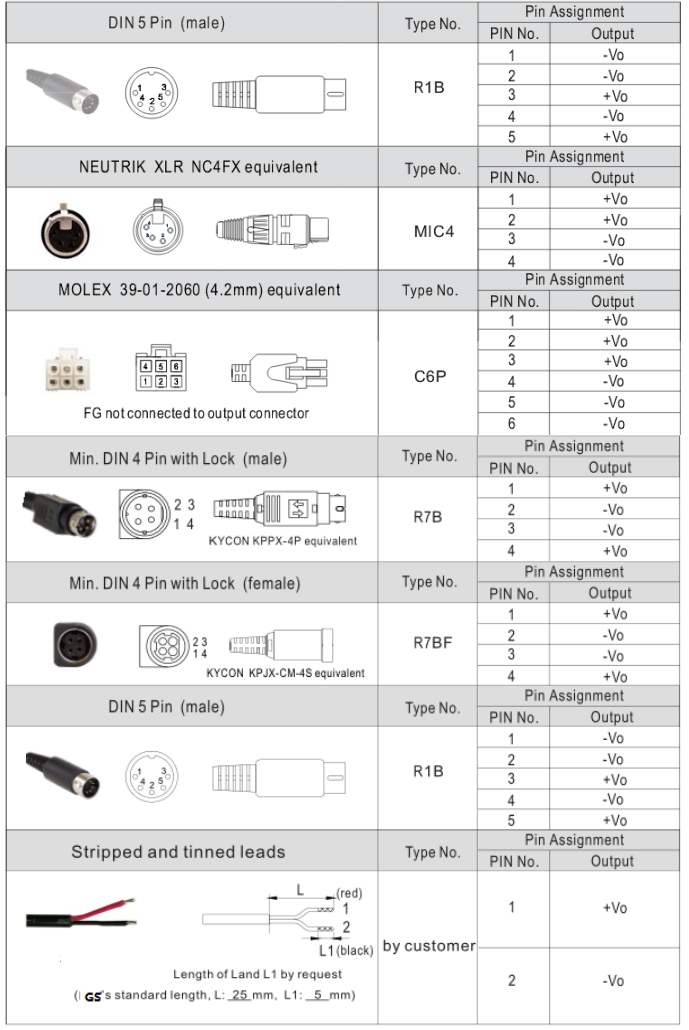

Standard DC plug 5.5*2.1*10mm, other type available by client's requested

 Static characteristic

Derating curve
