130W GaN Inline European Standard Adapter

◆Features ·Input Voltage range:100VAC-240VAC ·PF>0.90 ·No load power consumption<0.21W ·Enegry efficiency Level Ⅵ ·Protection Function: Shorting Circuit Protection, Over Load Protection, Over Voltage Protection, Over Temperature Protection ·Ultrasonic craft, 3 years warranty ·Certificate: CB/CE


130W series

GaN adapter

CE Certificate

product details

Dongguan Guangshu Electrical Technology Co.,Ltd is specialized in designing, producing and selling various power adapter ,battery charger,inverter and accept OEM. All products have been approved by UL GS CE PSE CCC CB UKCA SAA , highly  efficiency, energy conservation and environmental friendly. If you want to know more detail products information or have different requirements on products,please contact us without any hesitate.

Mobile Phone: 86-13360632549 Email: Skype : Panfore


Item Model No. P160W8660G4E P190W6800G4E P200W6500G4E P240W5410G4E P300W4330G4E
Output DC Voltage 16V 19V 20V 24V 30V
Rated current 7.5A 6.80A 6.5A 5.41A 4.33A
Current range 0.1~7.5A 0.1~6.80A 0.1~6.5A 0.1~5.41A 0.1~4.33A
Rated Power 120W 129.20W 130W 129.84W 129.90W
Ripple & Noise 160mVp-p 190mVp-p 200mVp-p 240mVp-p 360mVp-p
Voltage tolerance ±5.0% ±5.0% ±5.0% ±5.0% ±5.0%
Line regulation ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
Load regulation ±5.0% ±5.0% ±5.0% ±5.0% ±5.0%
Efficiency 88.5% 88.5% 88.5% 88.5% 88.5%
Input Voltage range 90~264VAC
Frequency range 47~63Hz
AC current 2.5A/115Vac
Power Factor(Typ.) PF>0.90/230VAC   PF>0.97/115VAC at full load
Inrush current(Max.) Cold start 35A/115VAC      70A/230VAC
Leakage current(Max.) 0.75mA/240Vac
Protection Over load 110 ~ 160%  rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over voltage 105%~135% rated output voltage
Shut down o/p voltage, re-power on to recover.
Environment Working Temp. -10 ~ +40 ℃
Working Humidity 20%~90% RH non-condesing
Storage Temp. Humidity -40~85, 10%~95% RH
Vibration 10~500Hz, 2G 10min/ cycle,period for 60 min,each along X,Y,Z axes
Safety & EMC Safety standard  EN62368,IEC62368
Withstand voltage  I/P-O/P:3KVac, 60S
Isolationn resistance I/P-O/P: 100M ohms/500Vdc/25/70%RH
EMI conduction & radiation Compliance to EN55032
Harmonic current Compliance to  EN6100-3-2,3
Others MTBF 100Khrs min, MIL-HDBK-217F(25)
Dimension 75mm*75mm*29.5mm

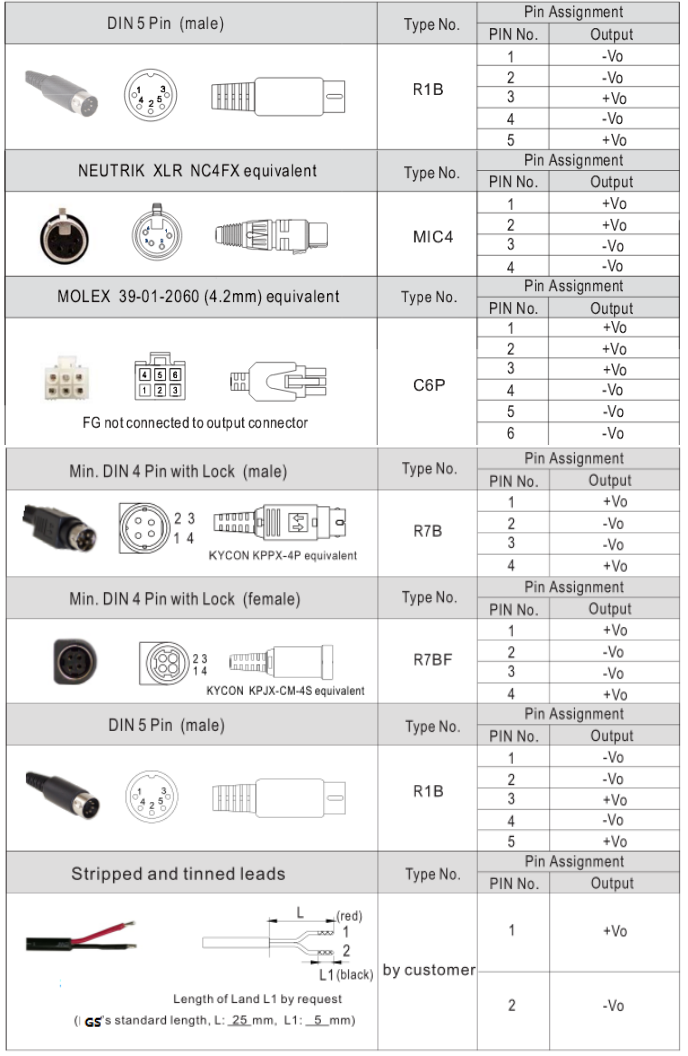

Standard DC plug 5.5*2.1*10mm , other type available by client's requested

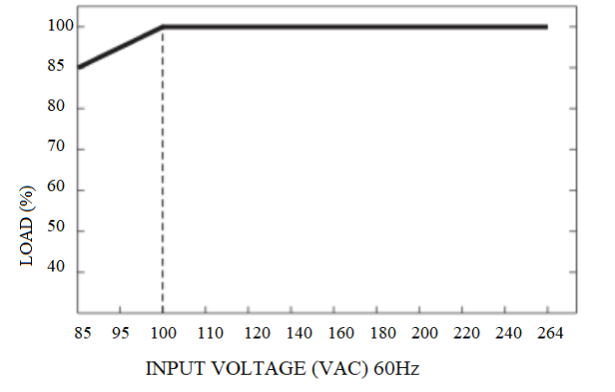

 Static characteristic

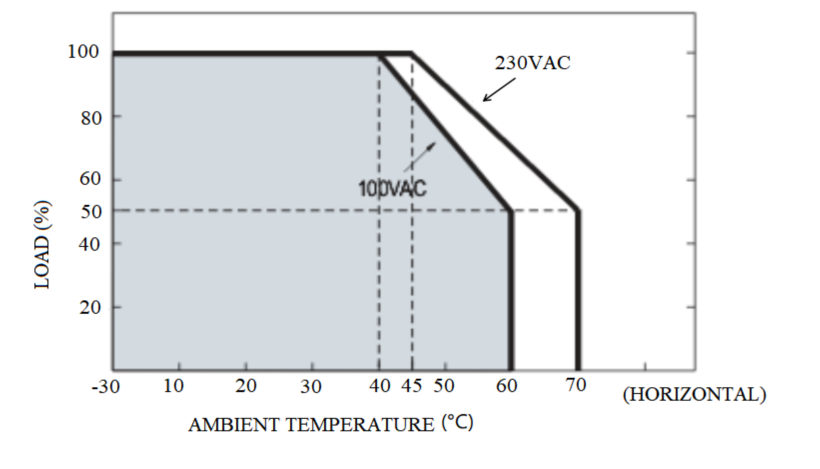

Derating curve
