400W Series Lead-Acid Charger
◆Features: ·Input Voltage range: 100-240Vac ·Certificate: CE ETL CB GS FCC CCC ·Input Connector:IEC320 C14 ·PF>0.94 ·Led Indicator: Red-Charging, Green-Fully Charged, Blinking Red-Fault ·Protection Function: Shorting Circuit Protection, Reverse Polarity Protection, Over Temperature Protection ·Fan Cooling ·3 years warranty ◆Application Widely used in Golf car, electric tools, Robot, Pesticide spraying machine, electric wheelchair
Classification
keyword：
lead-acid charger
400w
100-240Vac
product details
Dongguan Guangshu Electrical Technology Co.,Ltd is specialized in designing, producing and selling various power adapter ,battery charger,inverter and accept OEM. All products have been approved by UL GS CE PSE CCC CB UKCA SAA , highly efficiency, energy conservation and environmental friendly. If you want to know more detail products information or have different requirements on products,please contact us without any hesitate.
Mobile Phone: 86-13360632549 Email: sales@panfore.com Skype : Panfore
Details
| Item | Model No. | GS400C-1442300BA | GS400C-2881390BA | GS400C-4320926BA | GS400C-5760694BA | GS400C-7200556BA | GS400C-8640463BA |
| Output | Output Voltage | 14.4V | 28.8V | 43.2V | 57.6V | 72.0V | 86.4V |
| Floating Voltage | 13.8V | 27.6V | 41.4V | 55.2V | 69.0V | 82.8V | |
| Charging Voltage range | 8~15.0V | 16~30.0V | 24~45V | 36~60.0V | 48~75V | 56~89V | |
| Output Current(Max.) | 23.0A | 13.9A | 9.26A | 6.94A | 5.56A | 4.63A | |
| Rated power | 350W | 400W | 400W | 400W | 400W | 400W | |
| Recommended Battery capacity | 100~250AH | 60~130AH | 50~100AH | 40~80AH | 30~60AH | 20~50AH | |
| Battery Leakage Current | <1mA | ||||||
| Input | Voltage range | 94~254VAC 100~240VAC | |||||
| Frequency range | 40~63Hz | ||||||
| AC Current | 3.8A/115Vac 1.9A/230Vac | ||||||
| Power Factor | PF>0.94/230VAC PF>0.98/115VAC at full load | ||||||
| Inrush Current(max.) | Cold start<100A/230VAC | ||||||
| Leakage Current(max.) | <3.5mA/240Vac | ||||||
| Efficiency(Min.) | 86% | 88% | 88% | 88% | 88% | 88% | |
| Protection Function | Short Circuit Protection | Shut down o/p voltage,re-power on to recover | |||||
| Over Voltage Protection | <1.2times output voltage, Shut down o/p voltage,re-power on to recover | ||||||
| Reverse Polarity Protection | When output wires are reversely connected to the battery the charger will not operate and will work normally when DC wires are correctly connected. | ||||||
| Over Temperature Protection | Shut down o/p voltage,re-power on to recover | ||||||
| Environment | Working Temp. | -10℃ ~ +40℃ | |||||
| Working Humidity | 20%~90% RH non-condensing | ||||||
| Storage Temp. Humidity | -40℃~85℃, 10%~95% RH | ||||||
| Temp. Coefficient | ±0.05%/℃ (0~50℃) | ||||||
| Vibration | 10~500Hz, 2G 10min/ cycle,period for 60 min,each along X,Y,Z axes | ||||||
| Safety&EMC | Safety Standard | EN60335 ETL1310 | |||||
| Withstand Voltage | I/P-O/P:3KVac, 1 minute | ||||||
| Isolation Risitsance | I/P-O/P: 100M ohms/500Vdc/25℃/70%RH | ||||||
| EMI condition & radiation | Compliance to EN55032 | ||||||
| Harmonic current | Compliance to EN6100-3-2,3 | ||||||
| Others | MTBF | 100Khrs min, MIL-HDBK-217F(25℃) | |||||
| Dimension | 204mm*83.5mm*43mm | ||||||

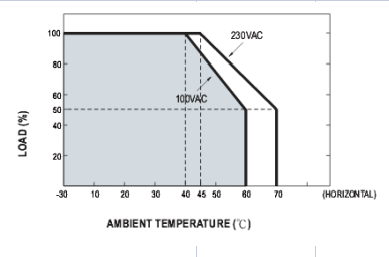

Derating Curve

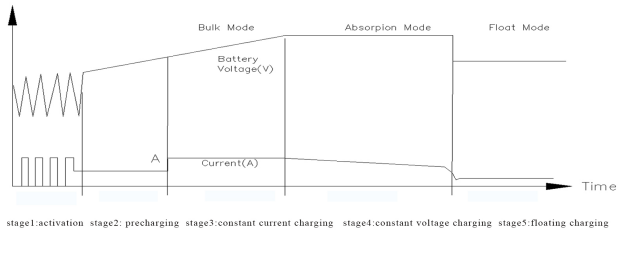

Charging rate
DC output plug

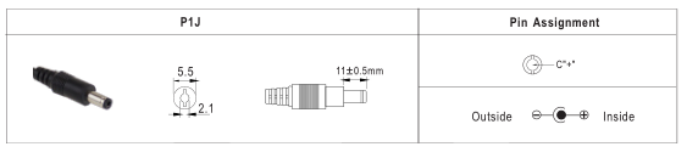

◎Standard plug: P1J

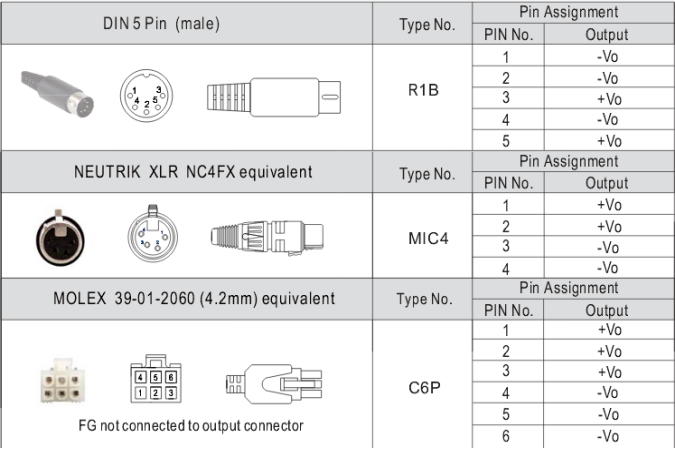

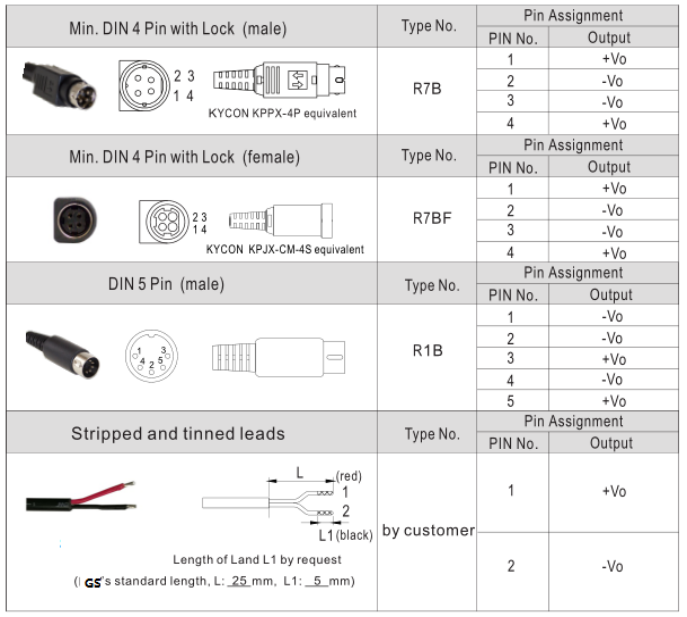

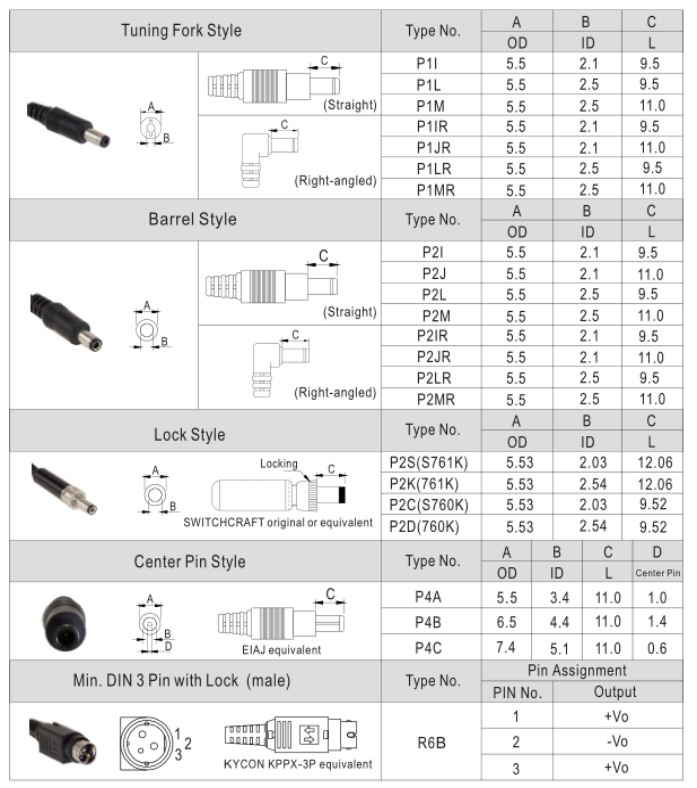

◎Optional DC plug
