PD100W Gallium Nitride American Standard Folding Charger
Basic features ·Input voltage: 100VAC-240VAC ·With power correction factor PFC>0.90 ·Protection: Short circuit protection/overload protection/overvoltage protection/over temperature protection ·Ultrasonic technology, warranty period: 3 years ·Certification: ETL/GS/CE/PSE/FCC/UKCA/CCC
Classification
keyword：
PD100W
product details
Dongguan Guangsu Electric Technology Co., Ltd. focuses on the R & D, production and sales of all kinds of power supplies, complete certification, efficient energy saving and environmental protection. If the specification requirements are not in the product display list class, welcome to consult!
Contact number :13360632549 E-mail: sales@panfore.com
Specification parameters:
| Item | Model | |||||
| Output | output voltage | 5V | 9V | 12V | 15V | 20V |
| Voltage range | 4.5V-5.25V | 8.55V-9.27V | 11.5V-12.36V | 14.5V-15.45V | 18V-20.4V | |
| Max Current | 3.0A | 3.0A | 3.0A | 3.0A | 5.0A | |
| Rated power | 15.00W | 27.00W | 36.00W | 45.00W | 100W | |
| Ripple&Noise | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | |
| Linear adjustment | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| load regulation | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| efficiency | ≥88% | ≥88% | ≥88% | ≥88% | ≥88% | |
| import | Input voltage range | 90~264VAC | ||||
| working frequency | 47~63Hz | |||||
| Input current | 2.5A/115Vac | |||||
| power factor(Typ.) | PF>0.90/230VAC PF>0.97/115VAC（loaded to capacity） | |||||
| Inrush Current(max.) | 35A/115VAC 70A/230VAC（Cold start） | |||||
| Leakage current(max.) | 0.75mA/240Vac | |||||
| protection | overload protection | 110 ~ 160% Rated output power | ||||
| Hiccup mode, automatically restored after abnormal elimination | ||||||
| Overvoltage protection | 105%~135% Rated output voltage | |||||
| Turn off the output voltage and resume after restarting | ||||||
|
environment |
working temperature |
-20 ~ +40 ℃ | ||||
|
Working humidity |
20%~90% RHdewless | |||||
|
Storage temperature/humidity |
-40℃~85℃, 10%~95% RH | |||||
|
Safety & EMC |
Vibration |
10~500Hz, 2G 10min/ cycle,period for 60 min,each along X,Y,Z axes | ||||
|
Safety regulations and standards |
EN62368,UL62368 IEC62368 | |||||
|
Voltage withstand test |
I/P-O/P:3KVac, 60S | |||||
|
Insulation impedance |
I/P-O/P: 100M ohms/500Vdc/25℃/70%RH | |||||
|
EMIConduction&Radiation |
EN55032 | |||||
|
harmonic current |
EN6100-3-2,3 | |||||
|
Other |
MTBF |
100Khrs min, MIL-HDBK-217F(25℃) | ||||
|
Size |
75mm*75mm*29.5mm | |||||
|
packing |
0.28Kg;30pcs/Carton | |||||
|
terminal |
Input terminal |
American standard folding plug | ||||
|
Output wire |
type C | |||||
Static characteristics: Derating curve:

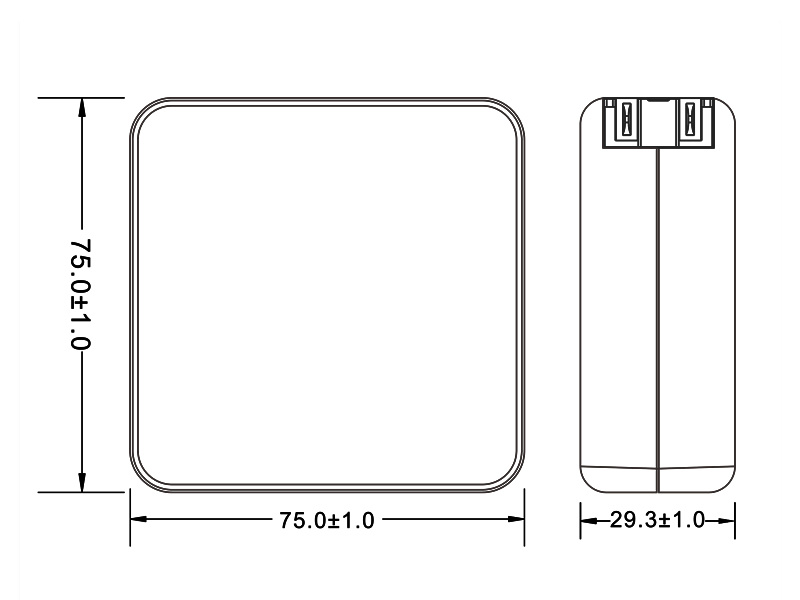

Overall dimensions:
DC output plug:
